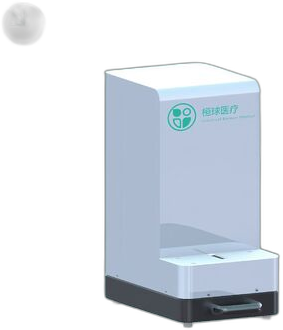

AI-Powered Stent Inspection Machine
CGT-SD-1000
A machine-vision system for medical stent quality control, combining ultra-high-resolution imaging with deep-learning defect screening.
Cracks, welds, surfaces.
Screened to submicron.
±2μm
Accuracy
<0.1%
Miss rate
5μm
Min defect
<60s
Per stent
Traceable by design
Inspected, measured, traceable.
Deep-learning screening flags cracks, weld inconsistencies and surface irregularities — with every result logged for traceability.
ACCURACY ±2 μm ·DEFECTS 0 ·MISS <0.1% ·SCAN 52 s ·RES 4K
Capabilities
Submicron stent inspection
Submicron rotational positioning
Proprietary technology aligns stents to submicron precision for consistent results.
Ultra-high-precision measurement
Non-contact ±2 μm accuracy with 3D visualization and coaxial sensors.
AI defect detection
Deep-learning screening with a sub-0.1% missed-detection rate.
Specifications
Technical details
- Dimension accuracy
- ±2 μm
- Dimension range
- 10–60 mm
- Defect detection
- <60 s (40 mm stent)
- Missed detection
- <0.1%
- Min defect size
- 5 μm
- Monitor
- 3840×2160
- Storage
- 16–64 TB
- Dimensions
- 1000×850×810 mm
- Certification
- CE
