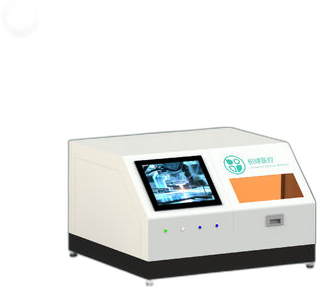

Laser Welding Machine
CGT-RW-1000
A laser coaxial rotary welder for precise, stable welding of medical balloon polymer tubing, with configurable process recipes.
Stable welds,
run-out under 0.01 mm.
10W
Laser power
<0.01mm
Run-out
0.5–50mm
Ø range
≤500rpm
Rotation
Traceable by design
Every weld, monitored live.
Coaxial laser rotation keeps the product stationary while HD visualization monitors the process in real time.
POWER 8.0 W ·RUN-OUT 0.008 mm ·RPM 400 ·WELD 46 mm ·PASS 100%
Capabilities
Coaxial welding, dialled in
Laser coaxial rotation
The product stays still while the laser rotates, improving welding stability.
Configurable process recipes
Adaptable welding parameters for varied production requirements.
HD visualization
Real-time process monitoring at 1920×1080 resolution.
Specifications
Technical details
- Max laser power
- 10 W
- Wavelength
- 10.6 μm
- Beam quality (M²)
- <1.2
- Spot size
- 0.1–3 mm
- Product Ø
- 0.5–50 mm
- Rotation speed
- ≤500 r/min
- Weld length
- ≤50 mm
- Run-out
- <0.01 mm
- Cooling
- Air
- Weight
- 200 kg
