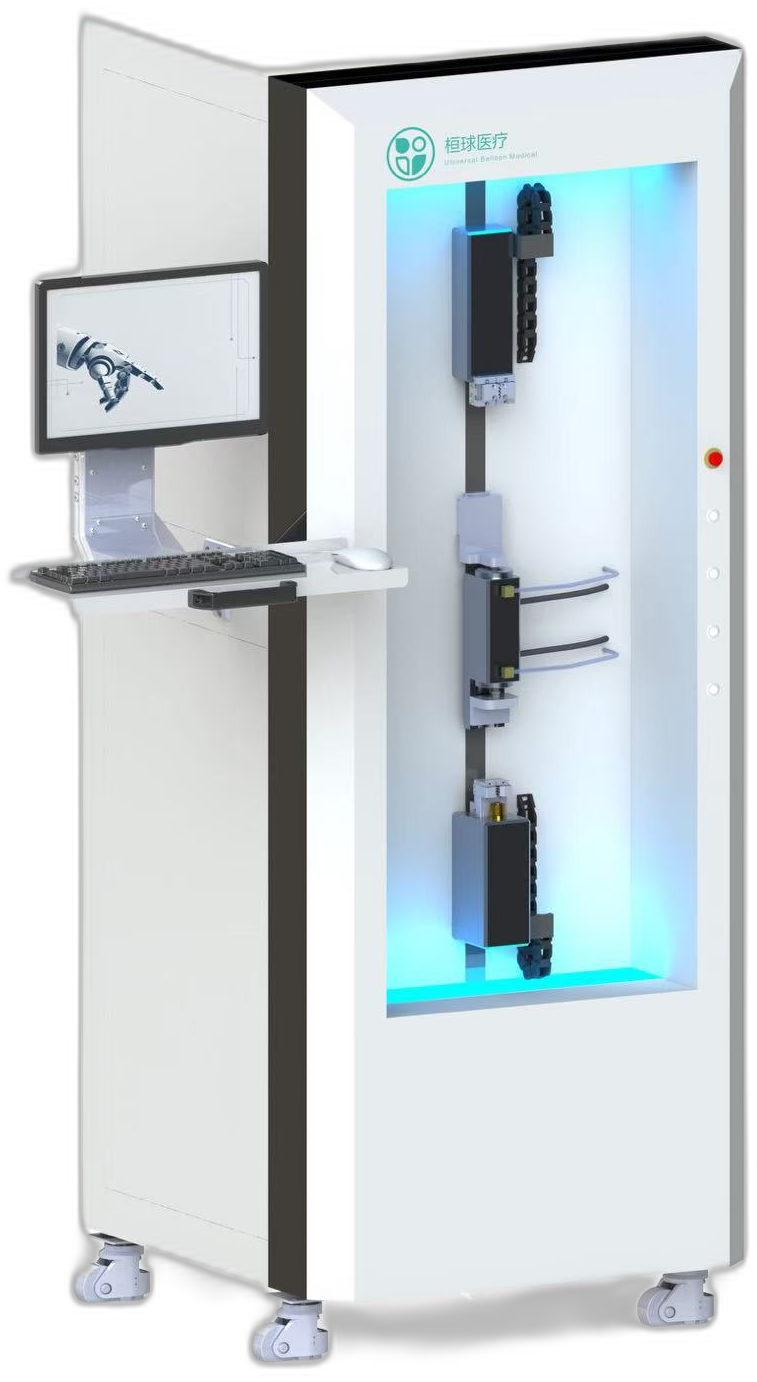

Balloon Forming Machine
CGT-UBF-2000
A vertical balloon-forming machine that shapes thermoplastic tubing into coronary, neuro and peripheral balloons — with micron-level precision, batch after batch.
Balloons formed to microns.
Repeatable, batch after batch.
Traceable by design
Every cycle, measured and logged.
Temperature, tension, pressure and cooling are recorded to an SQL database in real time — full quality assurance and defect traceability, ready for MES integration.
Capabilities
Engineered for precision at scale
Rapid mold cooling
A water-cooling system brings molds to their preset temperature in about ten seconds.
±3°C precision
Tight thermal control is held across the entire forming cycle, batch after batch.
Thermal calibration
Mold calibration keeps results consistent across multiple machines and shifts.
Custom sequences
Multi-step formulations run with automatic transitions between stages.
Real-time monitoring
Live graphs track temperature, tension, air pressure and cooling as it forms.
Full traceability
Every cycle is written to an SQL database, ready for MES integration and audits.
Specifications
Technical details
- Argon pressure
- 0–50 bar
- Compressed air
- 0–7 bar
- Temperature
- 20–300°C
- Cycle time
- 60–180 s
- Balloon diameter
- 0.5–18 mm
- Balloon length
- 1–180 mm
- Materials
- PET · Nylon · PU · Pebax
- Dimensions
- 850×850×2200 mm
- Weight
- 350 kg
- Certification
- CE
- Delivery
- 8 weeks
