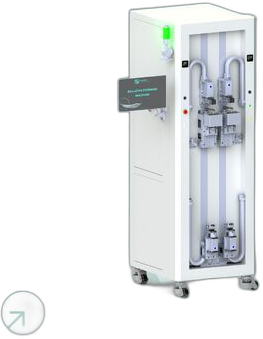

Dual-Mold Balloon Forming Machine
CGT-UBF-3000
A dual-mold vertical forming system that produces two balloons per cycle with closed-loop control of temperature, stretch force, pressure and cooling.
Two balloons per cycle.
Twice the output, same precision.
2×
Balloons / cycle
~10s
Mold cooling
SQL
Traceability
CE
Certified
Traceable by design
Every cycle, measured and logged.
Closed-loop control of temperature, servo position, pressure and motor current is recorded to an SQL database with timestamps — ready for regulated, MES-connected production.
MOLD A 184°C ·MOLD B 183°C ·SERVO 0.02 mm ·CYCLE 132 s ·YIELD 99.3%
Capabilities
Double the throughput, engineered in
Dual-mold vertical design
Processes two balloons simultaneously per cycle with consistent dimensional accuracy.
Flexible recipe configuration
User-defined sequential steps with automatic transitions on parameter thresholds.
Integrated data traceability
SQL-based storage for historical analysis and full process monitoring.
Specifications
Technical details
- Configuration
- Dual mold, vertical
- Mold cooling
- ~10 s
- Monitored
- Temp · pressure · servo · current
- Data storage
- SQL, timestamped
- Integration
- MES / factory network
- Certification
- CE
- Origin
- Suzhou, China
