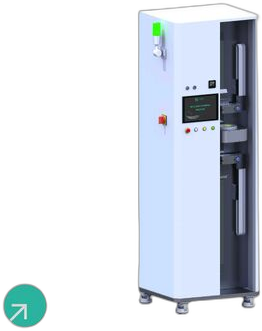

Balloon Tubing Pre-Stretching Machine
CGT-UBP-1000
Industrial equipment that automatically stretches raw tubing into clear, consistent preforms for subsequent balloon blow-molding.
Tubing into preforms,
clear and consistent.
200mm/s
Max stretch
20–25s
Cycle time
9mm
Max tubing Ø
150°C
Max temp
Traceable by design
Consistent preforms, every load.
Radial compression heating and a touchscreen HMI deliver repeatable stretching with improved preform clarity.
TEMP 132°C ·SPEED 180 mm/s ·STROKE 400 mm ·CYCLE 22 s
Capabilities
Clarity and speed, dialled in
Radial compression heating
Reduces processing time and improves preform clarity versus non-contact heating.
Touchscreen HMI control
An intuitive interface for simple operation throughout the process.
Rapid cycle time
Typically 20–25 seconds per piece including loading and unloading.
Specifications
Technical details
- Max tubing diameter
- 9 mm
- Max stretch speed
- 200 mm/s
- Effective stroke
- 400 mm up / 600 mm down
- Temperature
- Room–150°C
- Dimensions
- 600×500×1850 mm
- Weight
- 180 kg
- Power
- 100–240 VAC, 1.5 kW
